Servo, Electromechanial Voltage Regulator | TSDXtend Series

Static, Solid State Voltage Regulator | TSS Stella PX Series

Power Conditioning | TSS & Stella PX Series Static Voltage Stabilizers

Precise, Stable, Undistorted,
Conditioned AC Power to Your Power Infrastructure
Ultra Fast, Compact, High Overload Capacity, High Inrush Current Capacity, Efficiency is up to 98%

The TSS Stella PX Series Static Voltage Stabilizer presents optimized, robust power conditioning and performance, delivers versatility for many environments, vast range of applications.

The TSS Stella PX regulates the voltage fluctuations in the grid and gives a precise, stable output for the loads and systems only in one cycle, in 20 milliseconds. Protects the investment from high/ low voltages, damages and malfunctions caused by the unstable grid & save on equipment replacement and maintenance costs.

The design is based on microprocessor control for each phase, independently, the thyristor, SCR, tap changer topology changes the tap of the transformer to supply the output for best output voltage level.

The AVR comes in pure copper or booster transformer aluminum and autotransformer copper versions and with protection equipment against overload, short circuit, high/ low voltage at the output and various display and communication features.

TSS & Stella PX Series Static Voltage Regulators are the most preferred solutions for low voltage problems at telecom sites, railways sites and in use as outdoor IP54 solution in those regions.

The high inrush current capacity, design specification as supplying 380V/400V even at 140V or 80V mains voltages, tested and proven performance over 15 years, customized menu and protection features, all are securing telecom power on deserts or heavy rainy season environment, high humidity in coastline which causes electronics boards and enclosures to be rusted and oxidized, all are taken into consideration and robust solutions is making history for those clients.

All are possible with us, TSINE Electronics Industries.

The TSS Stella PX , TSINE expertise behind and premium components inside, is engineered to meet the needs of demanding environments & businesses worldwide.

Custom, Tailorized Designs are Available For Demanding Environments and Applications!

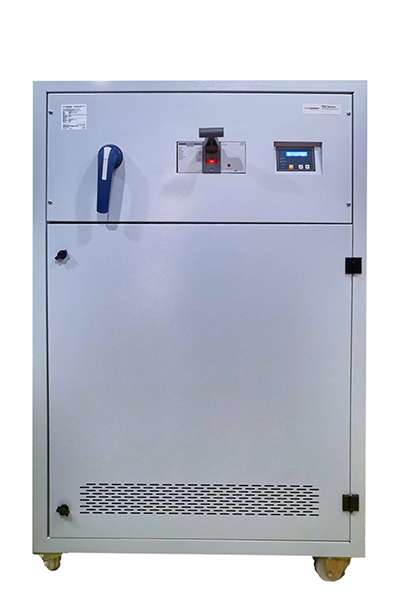

TSINE Stella PX Static regulator
Pro-IT Isolation Transformers, up to 600V, 5 VA to 4000 kVA

Best Suited for

Facilities, Mixed Loads Use

Industrial Loads & Systems

Medium & Large Sized Enterprises

Healthcare Facilities, Diagnostics and Medical Imaging Systems, CTs, MRIs, Angiography Devices

Financial Institutions, Banks, Banks Headquarters

Buildings of Government, Institutions & Organizations

Airports, Military & Police Stations

Tunnels, Automation & Ventilation Systems

Description

High AC~AC efficiency levels up to 94.5%

High battery conversion, inverter efficiency as 96.5%

Zero Effect on Utility with Active Power Factor Correction at Input, pf is ≥ 0.99

Low total harmonic distortion for input current as ≤ 4%

Compatible with the toughest application requirements with its super efficient IGBT Rectifier without sacraficing reliability.

Fault tolerant design allows the UPS both protect the connected load and itself from mechanical & electrical forces.

Robust, easy to operate UPS has excellent overload and short circuit capability, superior dynamic response and is easy to maintain.

Compact, easy and ready to install dimensions, minimized footprint, ease to move & locate inside buildings,

160 kVA footprint is only 0,87 m2 (Module IGBT rectifier and inverter), Maximum single unit capacity is 800 kVA in 1,74 m2

Up to 40 kVA, Inbuilt batteries saves from space.

The UPS ProXtend HE is designed for maximized availability and uptime.

Minimized Service and Repair Times, Maximum Time to Repair, MTTR;  Maximized Mean Time Between Failures, MTBF, times

Since a datacenter’ s availability is scaled as 99.99%, Our UPS Systems offers the similar.

Thanks to Lower THDi and Active PFC at Input Side, Cost savings on Low Voltage Installation in UpStream The UPS

Reduced installation and operation costs, minimized footprint, minimized UPS/Electrical Room Requirements.

Operational expenditure is optimized with a complete and cost effective life cycle.

The high efficiency of the complete UPS (AC/AC), as well as of the inverter part (DC/AC), even at partial load, helps optimizing both HVAC system and battery sizing.

Less maintenance needs, advanced battery management which leads extended battery lifetime and extended lifetimes for lifed items means long replacement times and avoiding repeating costs.



The Result: Reduced Total Cost of Ownership & Fast Return of Investment

Thanks to Max. Availability and Max. Uptime for The Businesses, Minimized Downtimes.



Features

Easy & Fast Serviceability, Fast Dynamic Solutions to On-Site Problems

Robust, Reliable Operation, Proven Track Record and Use

Compact, highly-efficient, cutting-edge technology with built-in features to adapt to diverse environments and requirements.

IGBT Rectifier/ IGBT Inverter, Double Conversion Architecture, Available with Various Global Voltages

Seamless transfer between sources, high generator compability

High efficiency rates as up to 94%, even at partial load

Small footprint, high power density

Fault-tolerant, over-engineered design, DSP ultra high speed control architecture

High output short-circuit clearance capability

High output short-circuit clearance capability

Prolonged battery lifetime, budget -friendly lifetime.

Reliable Redundant parallel operation

High communication and connectivity capabilities

Options for Enclosure IP Classifications, Isolation Transformers,

Additional information

Voltage Class

600V
Input Voltage

, , , , ,

Output Voltage

, , , ,

Ratings

50W – 500 kVA
Voltage & Frequency

208-220-380- 400-440-480- 600Vac Others on Request
Windings Material

Copper or Aluminum
Efficiency

97% or higher
Form Factor

, ,

Transformer Design

Delta/Star, without neutral at the input
Neutral Line Capacity

100% of nominal
Dielectric Strength

4,2kVac min
CMNA

146 dB (with triple shielding)
Overload Capacity

200% for 30 sec, 500% for 1 sec,
1000% for 1 cycle
Load Regulation

±1% at full load.
Audible noise

< 45 dB at 1mt.
Enclosure type

IP21, metal, epoxy painted RAL7035
Operating temperature

0°C to 50°C ambient
Operating humidity

up to 90% relative (non condensing)
Operating altitude

up to 1000mt above sea level
